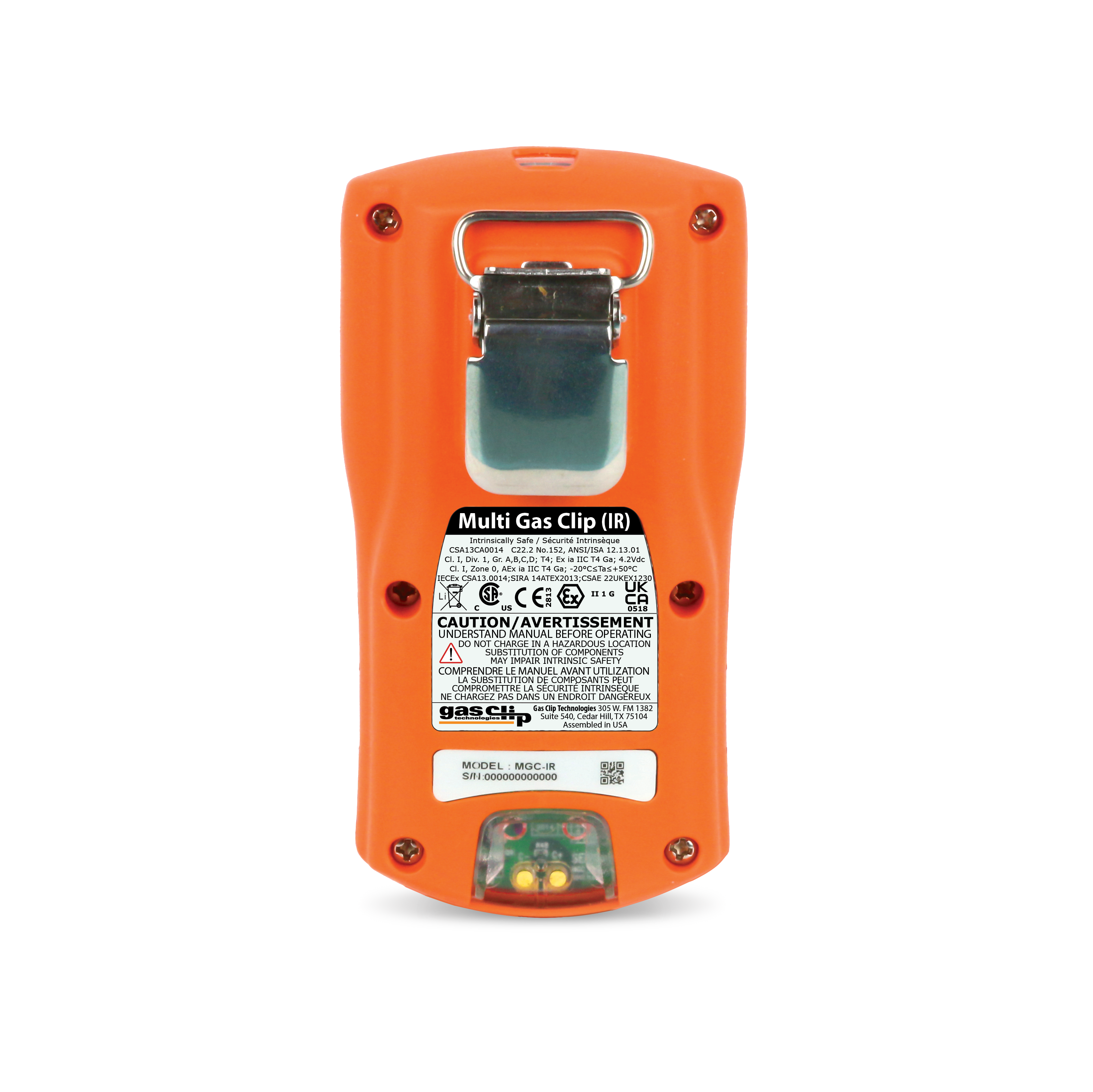

Multi Gas Clip Infrared

Multi Gas Clip Infrared

Battery life for months instead of hours!

Day in, day out, your workers have to charge their portable multi-gas detectors so they can keep testing for the presence of combustible gases, H2S, CO, and O2. Unfortunately, sometimes they may forget to do so. Gas Clip Technologies can help prevent this safety risk with our new Multi Gas Clip (MGC). It has the longest battery life of any portable gas detector by a long shot.

The new MGC can go a full 2 months without a charge, even without ever having to be turned off. Shut down the unit nightly and the battery can last up to 4 months. What’s the secret of the MGC’s extended battery life? It uses low-power photometric technology for the detection of the combustible gases (LEL). Instead of draining the battery with archaic pellistor technology, the MGC uses an IR source. This conserves power, so the battery lasts and lasts and lasts.

Note: The IR sensor can detect hydrocarbons. It cannot detect hydrogen or acetylene.

Category: ,

Tags:

  • 2 month battery life (continuous run time)
  • 1 year calibration cycle
  • Will work in inert environments, no need for oxygen
  • Simple to use
  • Bump/Calibration reminders
  • Docking station compatible
  • Programmable user ID

  • Size: 4.7 H x 2.4 W x 1.2 D inches (118.6 x 61.6 x 31.7 mm)
  • Weight: 7.7 oz. (240g)
  • Temperature: -4 ̊ to +122 ̊F (-20 ̊ to +50 ̊C)
  • Humidity: 5% to 95% RH (non-condensing)
  • Battery Life: Infrared versions......60 days continuous; Pellistor versions......25 hours (typical)
  • Charge Time: 4-6 Hours
  • Alarms:
    • Visual, vibrating & audible (minimum 95 dB)
    • Low, High, STEL, TWA & OL (Over Limit)
  • LEDs:
    • 4 Red alarm bar LEDs
    • Yellow back-light (activated on button press)
    • Red back-light (activated on alarm condition)
    • Yellow Maintenance Notification LED
  • Display: High viewing angle alphanumeric Liquid Crystal Display
  • Logs:
    • 25 Bump tests
    • 25 Events
    • 25 Calibrations
    • Continuous 1-second data logging, >2-month typical capacity
  • Tests:
    • Full function self-test upon activation
    • Sensors, battery and circuitry – continuous
  • User Options:
    • Custom user message
    • TWA/STEL intervals
    • Languages (6)
    • Latching alarms
    • Self-test lock
    • Auto-zero on startup
    • Bump test interval
    • Low/High alarm
    • Off-Lock
    • Maintenance notification
    • TWA method
    • Sensor enable/disable
    • SAFE display
    • Dock lock
    • Calibration gas percentage
    • Calibration interval
    • TWA/STEL alarm
    • % LEL or % by-vol

    Sensor Type Measuring Range Resolution
    H2S 0 - 100 ppm 0.1 ppm
    CO 0 - 500 ppm 1 ppm
    LEL 0 - 100% LEL 0.1%
    O2 0 - 30% 0.1%
