Honeywell BW Ultra

Honeywell BW™ Ultra

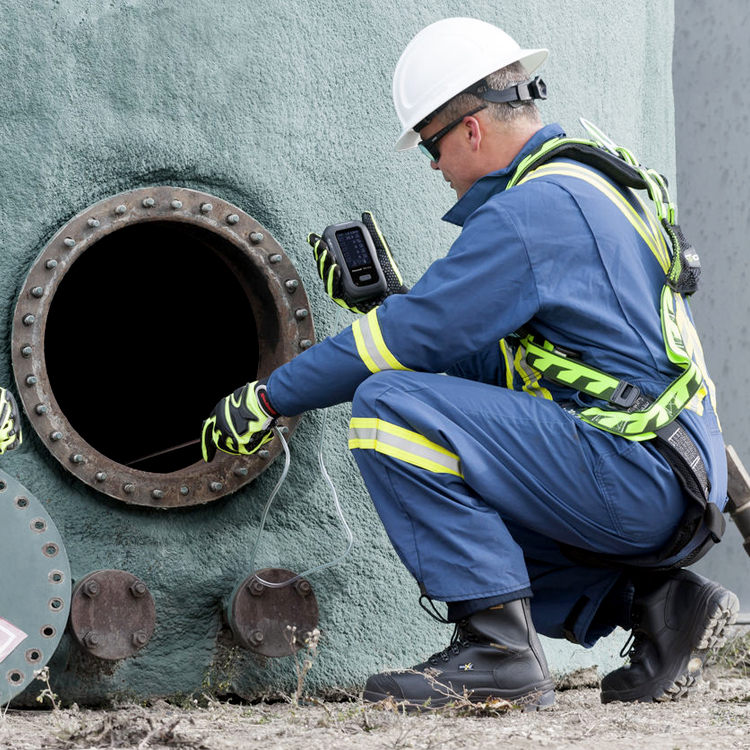

The Honeywell BW™ Ultra is a five-gas detector from Honeywell that is designed specifically for sampling and monitoring confined spaces, before and after entry. It benefits from unmatched sensor technology, visibility on gas readings, comfort, and connectivity – even in most extreme working conditions. The Honeywell BW™ Ultra simultaneously detects the four gases you’re required to monitor in confined spaces. Plus there is a fifth sensor for the gas of your choice. This way you can add a fifth level of protection for your confined-space entries.

Category: , ,

Tags: ,

  • Tamper-proof operation with one button operation
  • Intuitive LCD icons for quick decision making
  • Easy service and maintenance

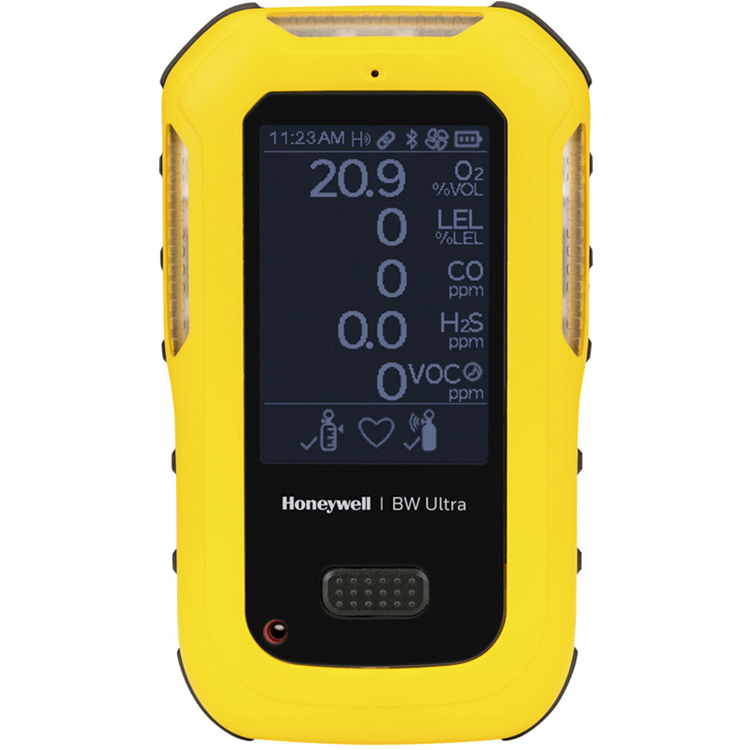

  • Intuitive large dot matrix display giving clear readings
  • Smart Gas layout for clear sensor reading
  • Hole Watch Mode for quick decision making
  • IntelliFlash™ and also Reverse IntelliFlash™ for clear compliance
  • Honeycomb-designed housing for extra ruggedness
  • Scratch-resistant display protector
  • Honeywell Connected Worker compatible
  • Honeywell TouchConnect™ Technology for activating a feature
  • Honeywell SafetySuite for unit configuration and reporting
  • Light, rugged & ergonomically designed for easy use
  • Quick responding sensor technology
  • Quick bump & calibration with IntelliDoX system
  • Size: 5.8 “ x 3.3” x 1.6” / 14.8 cm x 8.5 cm x 4.0 cm
  • Weight: 14.5 oz (411 g) (with clip)
  • Temperature: -4°F to 131°F / -20°C to +50°C
  • Relative Humidity: 5% – 95% RH (non-condensing)
  • Alarms and Type: Visual, vibrating, audible (95 dB), Low, High, TWA, STEL, OL
  • Battery Life: 18 Hours (14 Hours with PID or IR sensor)
  • Pump Draw: Sample from up to 75 ft / 22.9m
  • Connected Worker:
    • Bluetooth Low Energy connects to Honeywell’s Safety Communicator App
    • Honeywell TouchConnect™ – Easy ability to enter bump or calibration mode
  • Datalogging: 45 days based on 8-hour shifts every 15 seconds logging
  • Ingress Protection: IP66/68
  • Warranty:
    • Instrument: 3 years
    • Sensors: 3 years (2 years for NH3, 1 year PID and Cl2
    • Battery: 2 years
Sensor Type Measuring Range Resolution
H2S 0 – 100 ppm 1 ppm / 0.01 ppm
CO 0 – 2000 ppm 1 ppm
CO-H (CO low H2) 0 – 1000 ppm 1 ppm
Combustibles (LEL) 0 – 100% 1%
Combustibles (IR) 0 – 5.0% 0.01%
O2 0 – 25% 0.1%
SO2 0 – 100 ppm 0.1 ppm
H2 0 – 2000 ppm 5 ppm
CO2 0 – 50000 ppm 100 ppm
NH3 0 – 100 ppm 1 ppm
VOC 0 – 1000 ppm 1.0 ppm
Cl2 0 – 20 ppm 0.1 ppm
NO2 0 – 50 ppm 0.1 ppm
HCN 0 – 100 ppm 0.1 ppm
NO 0 – 200 ppm 1 ppm
