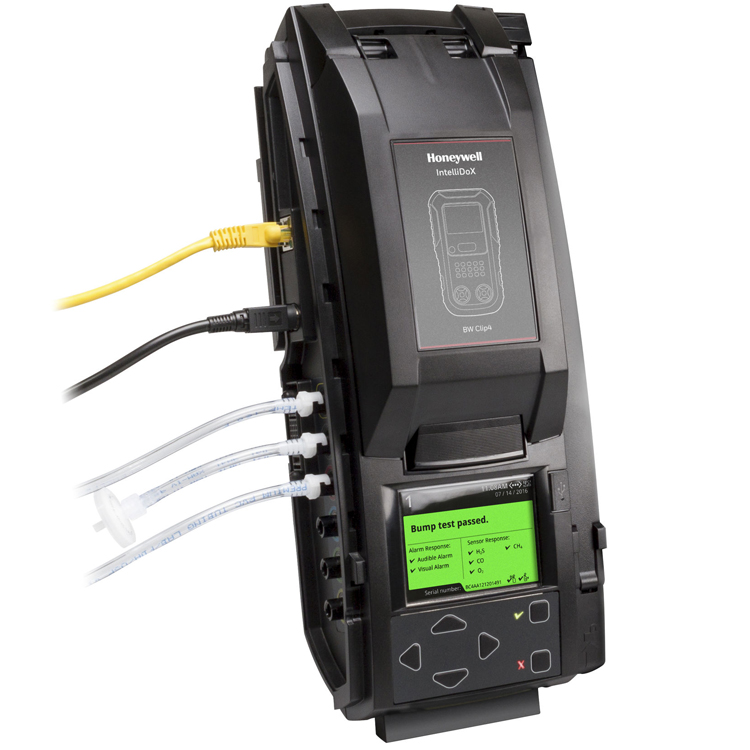

IntelliDoX Docking and Data Management System

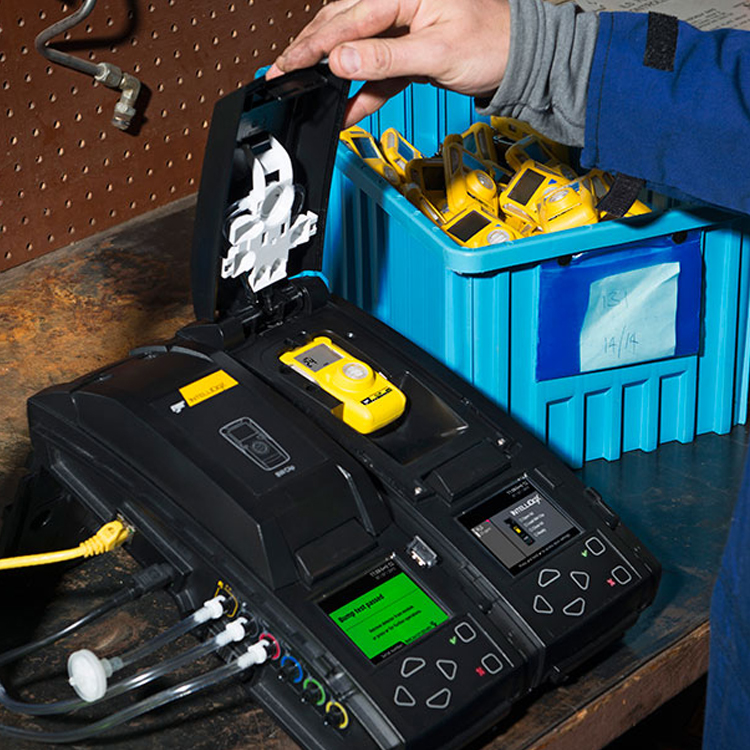

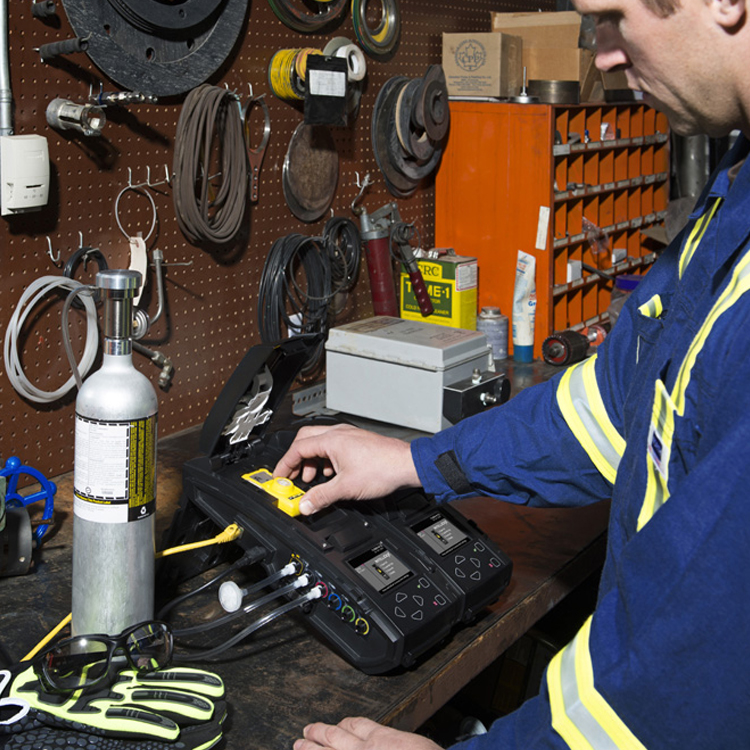

The IntelliDoX system combines smart docking modules and device management software to provide automated instrument management for compatible detectors, helping you drive productivity, reliability, and efficiency. Fast instrument management and enhanced productivity. IntelliDoX is easy to install, taking under 2 minutes from setup of a five‑module dock to the bump of your first instrument. Each module has its own operating system, LCD screen and the internal pump allowing you to perform more than one operation at the same time. Whether you
want to bump three detectors or calibrate others – you can get more done in less time.

Flexible configuration to meet changing needs

Configure the low and high alarm setpoints – plus other detector parameters – throughout the lifespan of the detector. So you can rely on your detector to always work the way you want it to.

Compatible with:

  • BW™ Clip Series
  • Honeywell BW™ Clip4
  • Honeywell BW™ MicroClip Series
  • Honeywell BW2 Ultra

Category: ,


  • Industry-leading FastBump test that eliminates bottlenecks, while avoiding costly purge cycles that waste gas

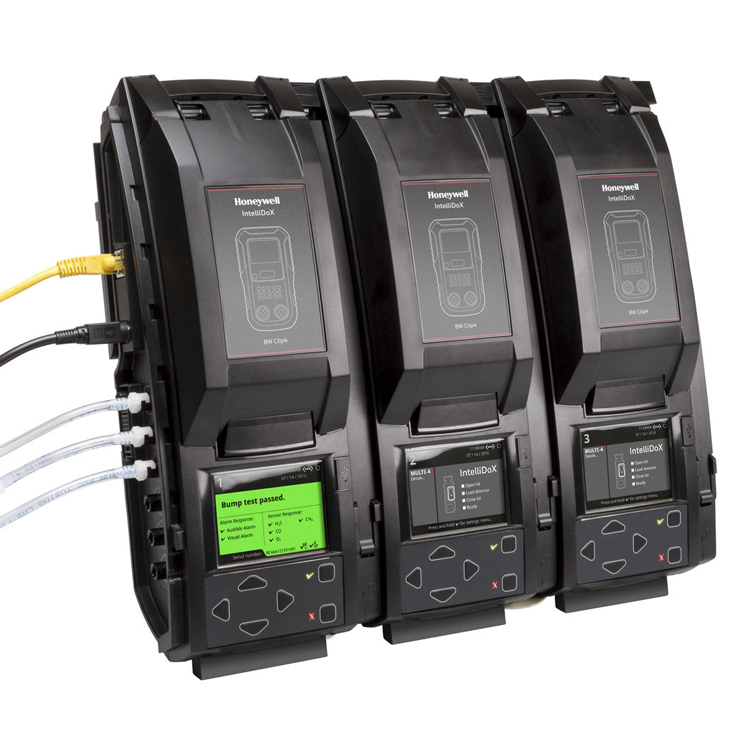

  • Gangable up to five modules, each with its own LCD screen and keypad for independent operation
  • Easy to set up with no tools required
  • Easy to connect via Ethernet to a network
  • USB port to easily configure dock module settings or retrieve data without network access
  • Automated bump test and span calibration operation
  • Device management with Honeywell SafetySuite
  • Bump testing, calibration, configuration, and record‑keeping support for compatible detectors
  • User updatable settings:
    • Configure alarm settings
    • Display gas reading during alarm
    • Enable non-compliance indicator
    • Hibernate detector
    • Schedule bump test and calibration reminders
    • Transfer event logs
    • Time display preferences
    • Update firmware

  • Size: 5.4 x 14.2 4.3 inches (13.8 x 36.2 x 10.9 cm)
  • Weight: 4.2 lbs (1.91 kg)
  • Power Supply: Provides time and date stamp
  • Communication method: Two-way infrared communication between docking module and detector
  • External Interface: 1 USB port; 1 Ethernet port
  • Menu Navigation:
    • Adjust display settings
    • Adjust time and date
    • Configure gas inlets
    • Review IntelliDoX module
    • Password protected (if enabled)
    • Configure display language (English, French, German, Portuguese, Spanish)
  • Automatic Tests:
    • Automatic bump test to verify sensor responds to target gas
    • FastBump in 10 seconds for BWClip/BWClip Real Time
    • Calibration of zero span; audible and visual alarms
    • Transfer of data and event logs
  • Data Storage: 2 GB Internal
  • Pump: Independent pump in each IntelliDoX module; Flow Rate: 350 ml/min
  • Instrument Management System: Honeywell SafetySuite; Fleet Manager II
  • Warranty: Full two year warranty
